Super Clearance AHD 4CH DVR 1080N Video Recorder HD 720P 1.0MP Night Vision cctv camera set Home Surveillance Security Cameras System kits

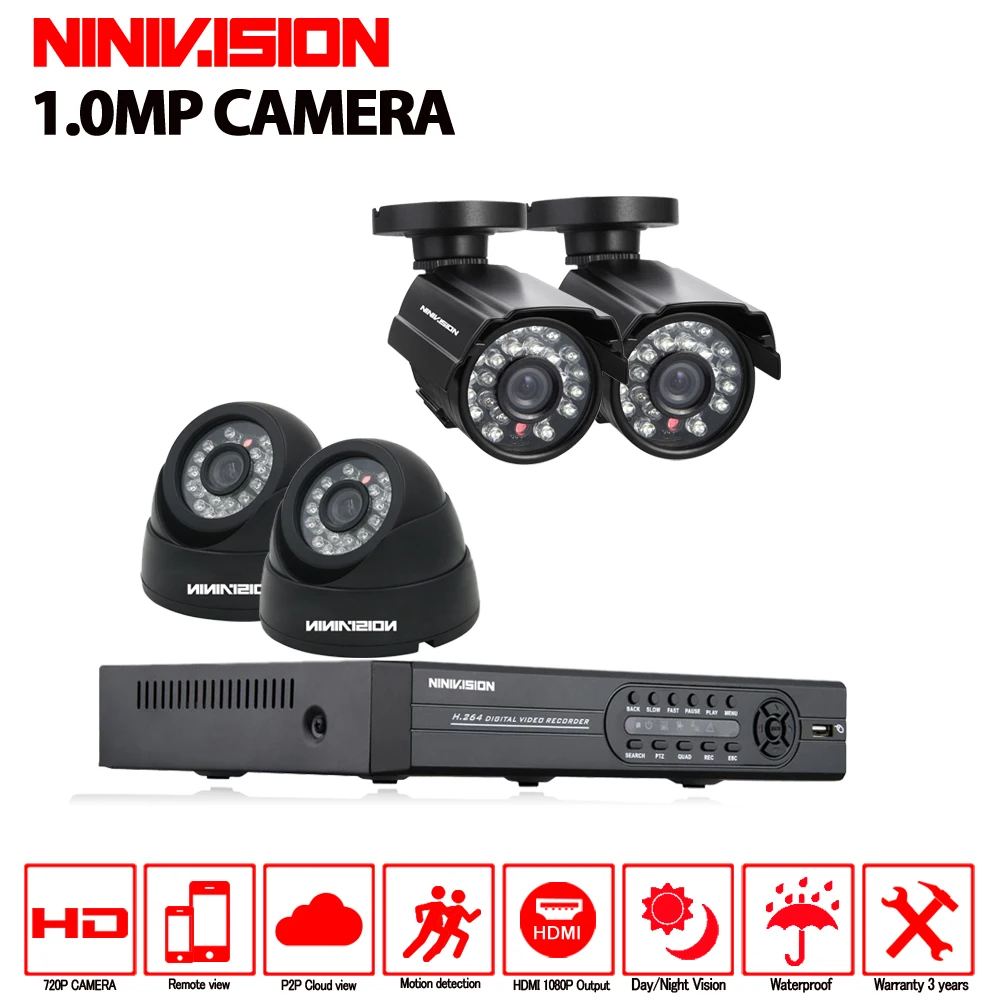

Product show

Items included

• 1 X 4CH AHD 1080N DVR NVR HVR 5 in 1 Digital Video Recorder
• 4 x HD 1.0MP/720P indoor outdoor IR Day Night vision weatherproof cameras
• 4 X 65feet(20m) cctv video cable for camera
• 1 x 12V 2A power adapter for cameras
• 1 x 12V 2A power adapter for DVR
• 1 X 1 to 4 power splitter cable
• 1 X USB Mouse for DVR
• 1 X Software CD for DVR
• 1 X Remote Control for DVR
• Hard Disk optional !!!!

Overview

• 4pcs HD AHD 720P CCTV Cameras;
• 4CH AHD 1080N Hybrid DVR Recorder
• Strong Network Server;
• With P2P Cloud Function;
• support USB ,Mouse,backup;
• Support Android,iphone,ipad,pc,cms view;
• Support VGA output&HDMI output(1080P);
• Record Resolution: AHD 1080N (1080*960);
• With H.264 High efficiency Video Compression;
• Auto White Balance,Auto Gain control,back light comp;
• HDD Interface:SATA,Support between 250GB and 4TB;
• Multi-language menus option up to 28 kinds of language.

Product Specifications

4CH AHD-NH / 1080N specifications:

System

Main processor: Embedded processor

Operating system: Embedded Linux

Video&Audio

Video Fortmat :PAL or NTSC

Video compression:H.264

Encode capacity:4*AHD-NH /1080N

Decode capacity:4*AHD-NH 1080P /4*AHD-NH 1080P

Analog input:4*AHD-NH / 1080N

Digital input:4*1080P(Network)

Hybrid input:2*AHD 1080P(analog)+2*1080P(Network)

Audio Input:4 RCA Input

Audio Output:1 RCA Output

Audio compression:G.711A

Recording

Compression Format: H.264

Recording Resolution: NTSC: AHD 1080N(1280 x 1080) PAL: AHD 1080N(1280 x 1080)

Recording Modes: Manual/Motion/Schedule

Hard drive: Internal SATA hard drive required for recording,support up to 4TB

Network

LAN Connection: YES

Network Interface: RJ45

Interface

Video input : 4ch BNC

Video output :1ch VGA, 1ch HDMI

Audio input :4ch RCA

Audio output :1ch RCA

Network interface :RJ45 10M/100M

PTZ control :1*RS485, Support multiple PTZ protocols

USB :2* USB 2.0

HDD :1*SATA port (Max 4TB/per)

Wireless :3G, WIFI (extension via USB)

General

Power Supply : DC 12V

Back up method : External storage via USB

Temperature：-10℃+50℃

Humidity ：10%-90%

USB Mouse：included

Remote Control : YES

Dimension：250mm(length)*235mm(width)* 45mm(height)

Weight：1.5KG

DVR Language

Russian, English, Finnish, French, German, Greek, Italian, Japanese, Poland, Protugal, Spanish, Thai, Turkey Romanian, Slovakia, Czech, Arabic, Swedish and so on

HD CCTV Security camera specifications: Bullet outdoor camera:

Video

Image sensor:1/3″inch CMOS

Video quality:1.0MP/720P

Lens:3.6mm lens(3.6mm Default,6mm optional)

Day/Night Mode:Color During day/switches to B&W at night

General

Indoor / Outdoor:Suitable for Indoor or Outdoor use

Operating Temperature:-30°F~122°F / -32°C ~50°C

Operating Power:DC 12V

Weatherproof:yes

Minimum Illumination: 0.0 Lux

Body Construction:Bullet with Built-in Wall Mount

Night Vision

Distance:Up to 30m

IR Cut Filter:yes

Number of IR Lens:24pcs

Dome indoor camera:

Video

Image sensor:1/3″inch CMOS

Video quality:1.0MP/720P

Lens:3.6mm lens(3.6mm Default,6mm optional)

Day/Night Mode:Color During day/switches to B&W at night

General

Indoor / Outdoor:Suitable for Indoor or Outdoor use

Operating Temperature:-30°F~122°F / -32°C ~50°C

Operating Power:DC 12V

Weatherproof:no

Minimum Illumination: 0.0 Lux

Body Construction:Bullet with Built-in Wall Mount

Night Vision

Distance:Up to 30m

IR Cut Filter:yes

Number of IR Lens:24pcs

AHD-NH/1080N High Definition Display

High-Definition interface output,Suport for online playback,Mobile remote,Multi-window display
with 1080N Resolution.The angle will be more larger,and the image will be more clearer

Multiple viewing options

View on HDMI Monitor

Easily display video through the HDMI port of your computer monitor to take full advantage of the security system’s

clarity. (HD Cable Not Included)

View on TV or PC Monitor

For added convenience, the DVR also comes with VGA and BNC connections for standard resolution viewing options.

VGA or BNC to RCA cable is not included.

AHD DVR NVR HVR 5 IN 1

You can freely enjoy five connection modes with this one multi-function digital video recorder.AHD(Analog High Definition)is new advanced technology on home security with 5 recordering modes.for your option:Analog / Network / TVI / CVI / AHD+Network. You can get HD quality video in each mode.

Remote viewing anywhere,anytime

View live video of the system from anywhere and anytime via you smarphone, table or PC with advanced P2P technology, you are able to remote access your system in minutes or less, no portforwarding needed, remote access has never been so easy！！！

Instant email alert

Motion Detection Recording

This system is designed to send an email alert when any motions are detected and allows you to record only when motion is detected.

Plug and play ,Easy to use

The cctv security system is plug and play ,easy to set up,Making lift more easier.Remote viewing anywhere anytime.

HD CCTV Security Camera

By using the high performance sensor, image is clear, delicate and high performance sensor, image is clear, delicate;

Support IR-CUT dual filter switch, day and night to achieve monitoring, color is not distortion.

Analog HD AHD video output;

The transmission distance is 500 meters;

Support automatic electronic shutter function, adapt to different monitoring environment;

Million pixel HD video transmission of low cost, long distance, no delay, high efficiency, anti-jamming and easy to implement;

Easy installation & operation, as same as analog CCTV system

More acceptable, lower price than analog surveilance system

NO Delay, Real time Display.

IR-CUT Filter

Intelligent auto IR-Cut filter switches between day and night to provide you 24/7 monitoring with high quality images and stunning infrared night vision.

Wide Video angle

see more video view angle !!!!

IP66 Weatherproof

Our camera adopts heavy-duty metal housing,professional IP66 weatherproof,Providing stable performance both indoor and outdoor.

You can install it by yourself

You can install it in there place
